JACKS AND PLUGS
MIL-TYPE 1/4" PHONE PLUGS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

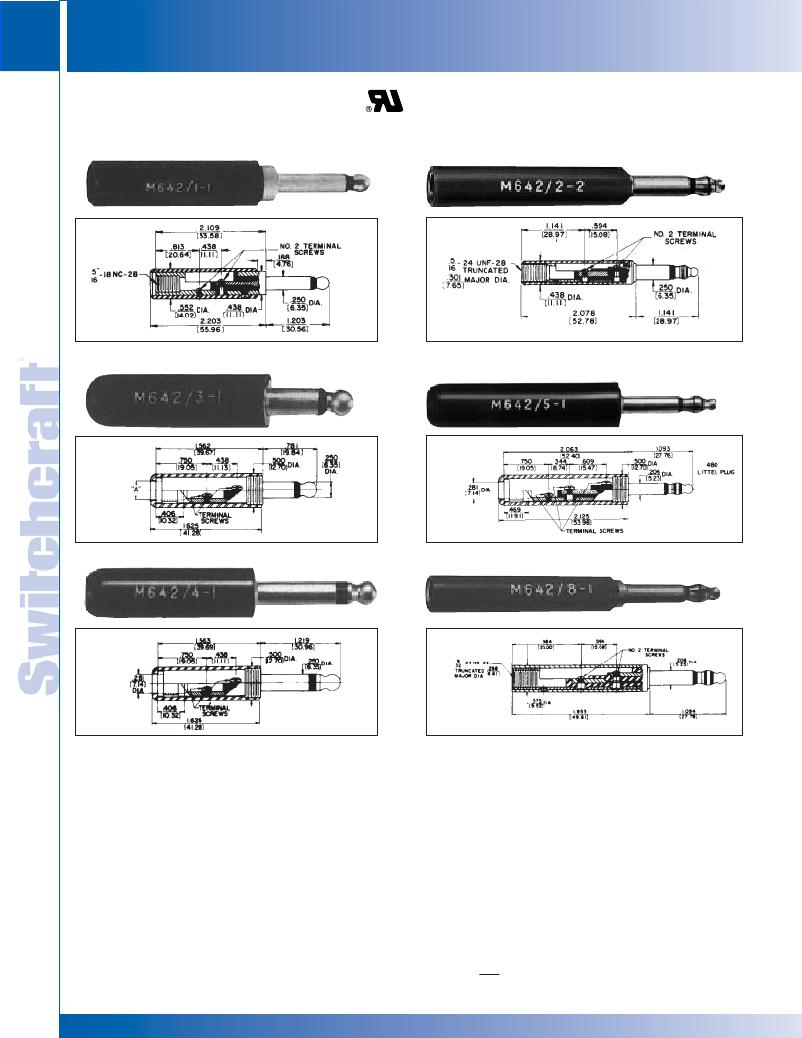

MIL-TYPE 1/4" PHONE PLUGS
2-CONDUCTOR
420, 425
430
440, 445
FEATURES
Designed for high quality communication equipment to meet
military requirements, This series features one-piece tip rod
and one-piece sleeve and plug body, assembled together into
a mode as inserts, providing a finished plug with complete
continuity of thermoplastic insulation between top rod and
plug sleeve. Internal (invisible externally) interlock mechanically
engages the metal and plastic components providing a
realistic lock to prevent parts shifting. Design and material in
accordance with MIL-P-642(A), MIL part number molded or
stamped on handle, manufacturer’s trademark (as required
by MIL specification) appears on plug body.
3-CONDUCTOR
482, 483
480 (.206")
484 (.206")
SPECIFICATIONS
Tip Rod, Body and Screws: Copper alloy, natural finish.
Terminals: Tinned copper alloy.
Insulation: Thermoplastic, per MIL-P-22985, Type II, Class 1.
Handles: Thermoplastic, Type 6, per MIL-M-20693, Type II.
Shielded; machined from copper alloy, nickel-plated.
STRAIN RELIEF CLAMP
For MIL-type Littel-Plug phone plugs. P2380 conforms to
Specification SC-A-7674-F - supplied with Plug Numbers 430, 440,
445 and 470. P2381 meets Specification MS-35762 - supplied with
Plug Number 480 and Extension-Jax ? phone jack, Number 820.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
